High Voltage Shunt Capacitor Technical Data

High Voltage Shunt Capacitor Technical Data:

The operation temperature of capacitor: BC-BFM series is-25℃~+45℃.BC-BAM series is -40℃~+45℃.

The altitude is higher than 1000m, it should be indicated inordering.

The medium between poles should resist one of the belowtests in 10 seconds.
a. Frequency AC voltage: Ut (~)= 2.15Un
b. DC voltage: Ut(-)=4.3Un

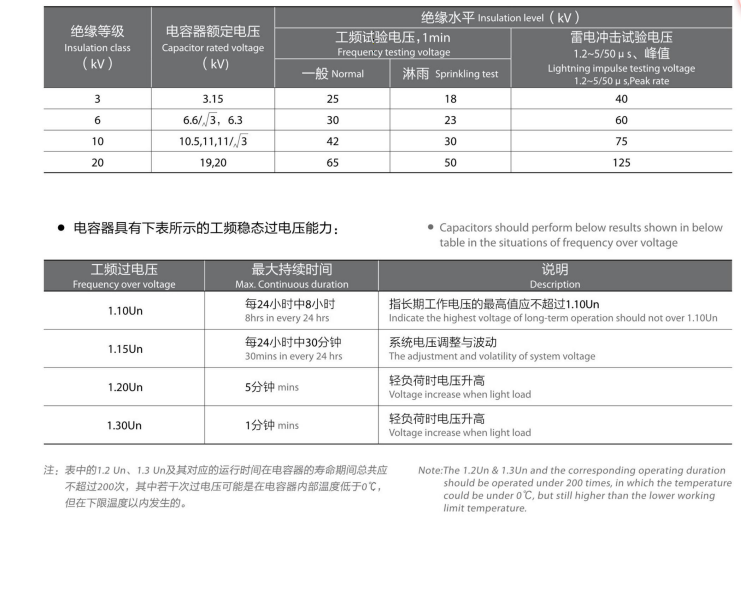

e. The insulation of the terminals and cases should resist below voltages:
