Busbar type Current Transformer

Category：Current Transformer
Views：21
Product description：Current Transformer , Voltage Transformer ,Dry type Transformer , Low Voltage Transformer ， BusBar type Current Transformer , китайский производитель трансформаторов тока, fabricante chino de transformadores de corriente,الصانع الصيني لمحولات التيار
Attachment INQUIRY

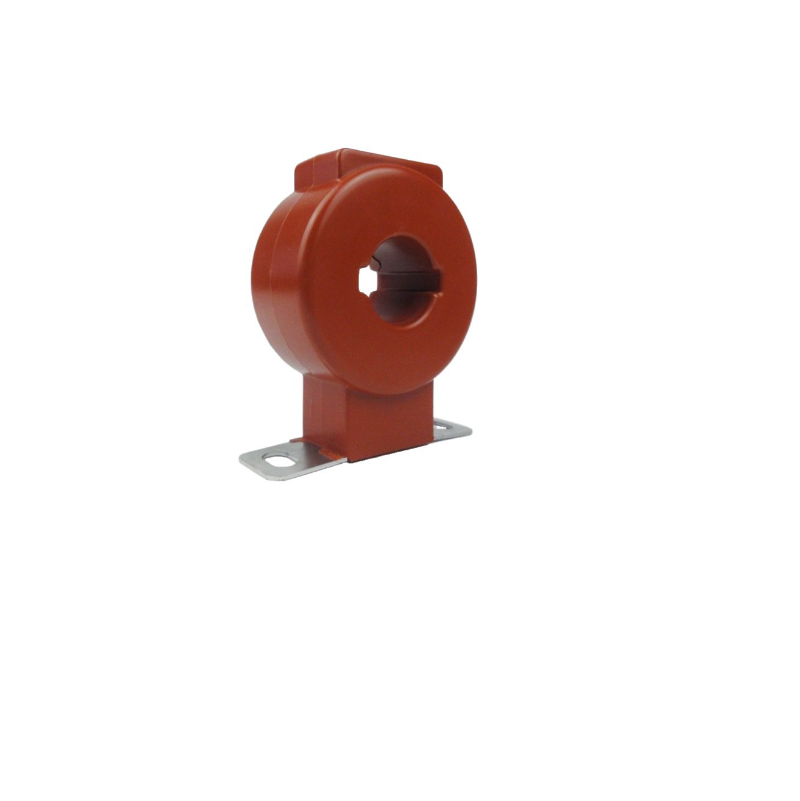

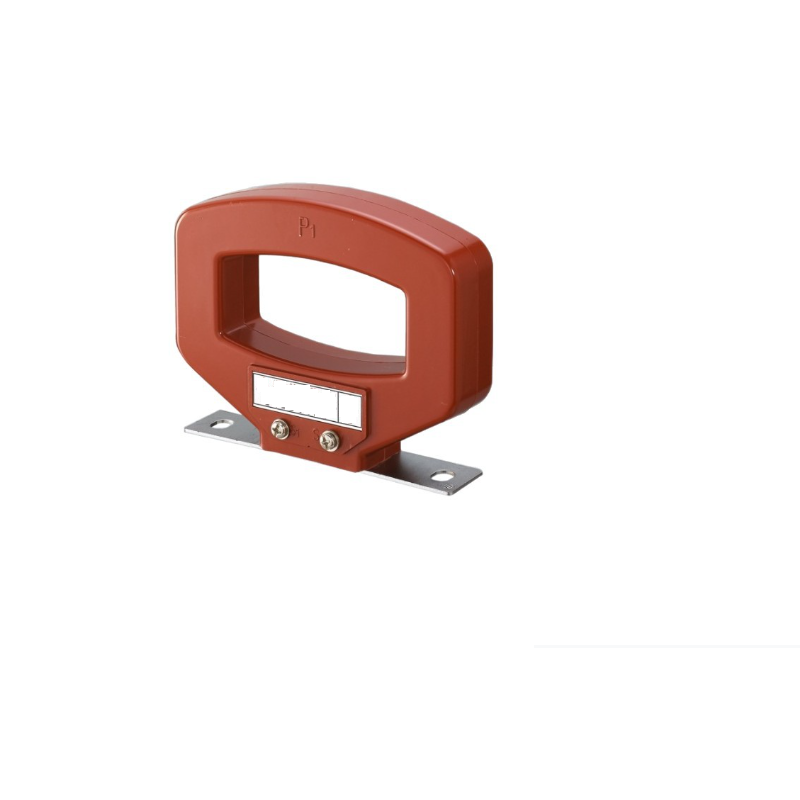

LMZJ1-0.5 Current Transformer used for metering current and electric energy , replay protection in the electrical system of rated frequency 50Hz or 60Hz and rated voltage 0.5KV. The Current Transformer has the character of small volume , light weight , superior insulation and so on .

The Current Transformer is full enclosed busbar type structure. The primary and secondary windings and iron core

are insulated by epoxy resin . The middle hole is used for busbar going through . The secondary outlet is wrapped by outlet box , which can prevent from stealing electricity.

It executed according to the standards IEC60044-1 :1996 and GB1208-2006 Current Transformer .
