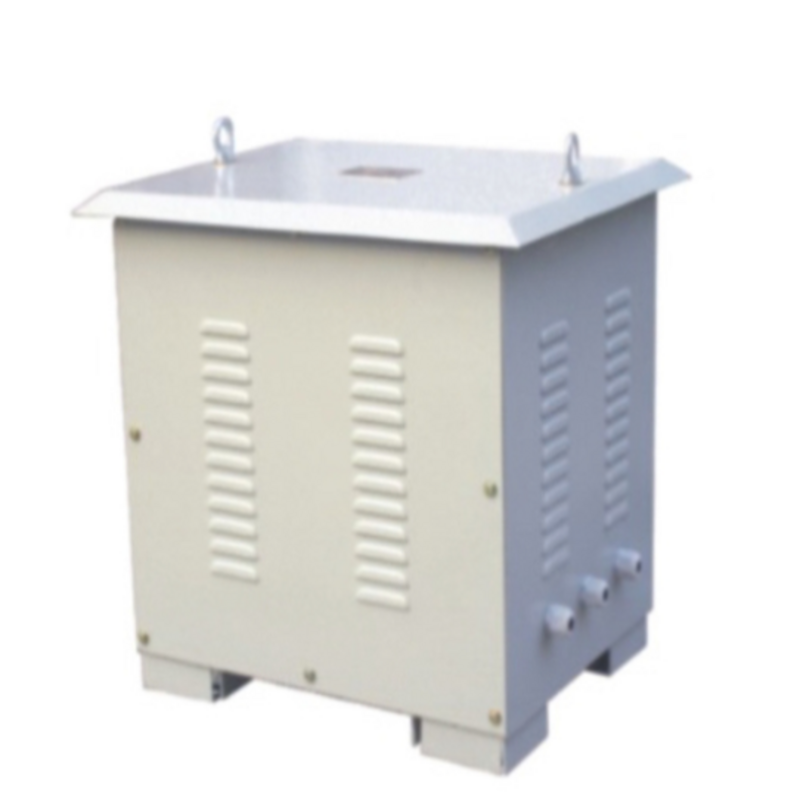

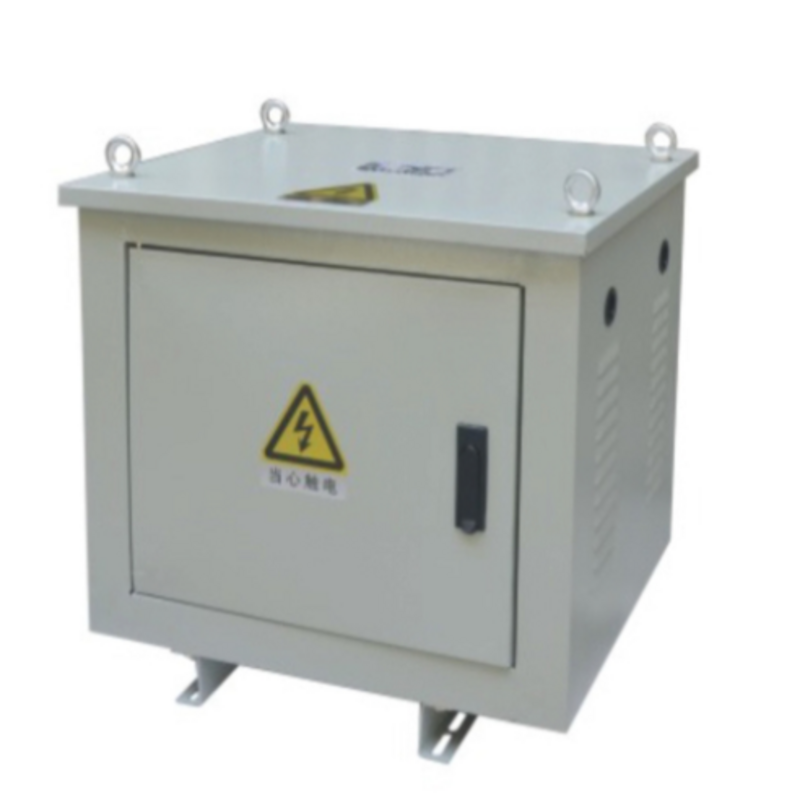

Marine Transformer

Product Item : 18
Category：Transformer
Views：564
Product description：Marine Transformer ,JBK5 Series Control Transformer, Control Transformer, Lighting Transformer , Dry type Transformer , Distribution Transformer, Oil-immerse Transformer, China Transformer ,Transformer Chinese supplier , CSD Maring Transformer , Boat Transformer , Naval Transformer China Factory , Naval Vessel Transformer , Vessel Transformer China Supplier , Ship transformer China ， Transformador
INQUIRY

Application

It is applicable to 50/60Hz circuits with voltage below 660V for ships, offshore platforms and their places for lighting, power, communication or power grid isolation.

CSD series marine transformers feature coils filled with glass fiber mat and encapsulated with epoxy resin. During the casting process, cooling air ducts are preserved within the coils. This design not only enhances heat dissipation but also ensures tight waterproof and moisture-proof performance.

Working conditions

Altitude: ≤ 1000m

Ambient temperature: ≤ 45 ℃

Relative humidity: ≤ 95%

Influenced by condensation, oil mist, salt mist and mold

There is vibration, impact, swing with angle ≤ 22.5 ° and inclination with angle ≤ 15 caused by normal operation of the ship.
