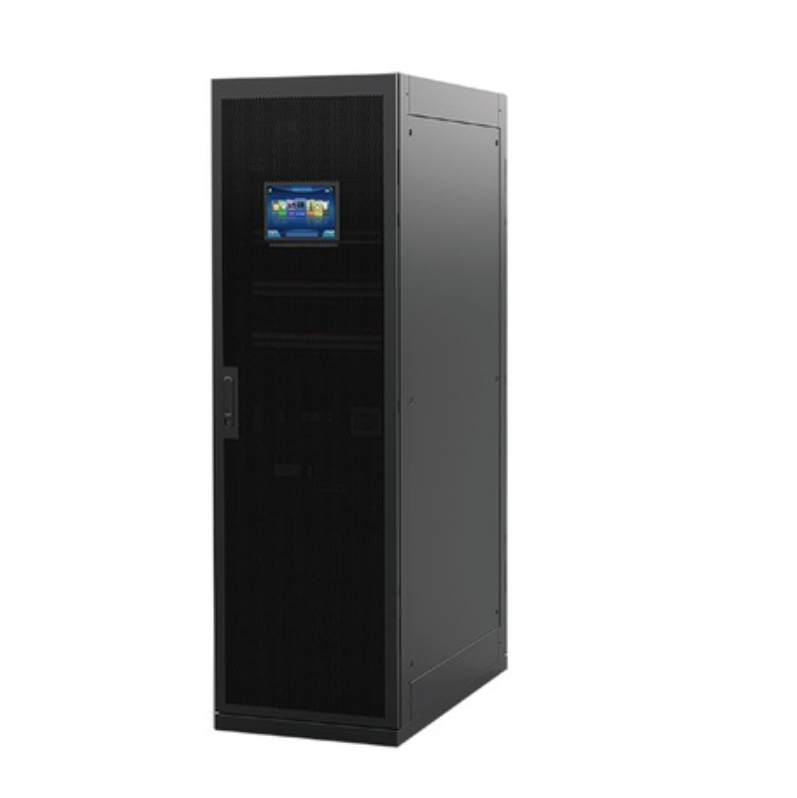

UPS series BD Module

BD MODULE

● Redundant Parallel Control System

This series of UPS adopts a distributed control and centralized management architecture. Each module operates independently under the unified management of a centralized control unit. The control unit features redundant parallel configuration—if one fails, the overall system continues normal operation.

● Intelligent Charging Technology

The UPS utilizes an advanced two-step, three-stage charging method:

1. Stage 1 : High-current constant-current charging rapidly restores ~90% of the battery capacity.

2. Stage 2 : Constant-voltage charging activates battery characteristics and ensures a full charge.

3. Stage 3 : Maintains optimal voltage to maximize battery lifespan.
   This method balances fast recharge and battery longevity, reducing total cost of ownership.

● Large LCD Touchscreen Display

The UPS is equipped with a high-resolution LCD (supporting dual-language English/Chinese menus) to display real-time status, alarms, and fault diagnostics. The intuitive menu-driven interface ensures easy operation.

● Per-Module LED Status Indicators

Each power module features LED indicators for at-a-glance monitoring of operational status.

● Smart Monitoring & Maintenance Bypass

• Remote Monitoring: When equipped with an SNMP card, the UPS supports remote management and alerts.

• Maintenance Bypass: Enables safe online servicing by switching to bypass mode during emergencies or repairs.

● Standard 7-inch Touchscreen with Hardware Watchdog

• The built-in hardware watchdog automatically reboots the system in case of unexpected freezes, ensuring high availability.
